Technical Specifications

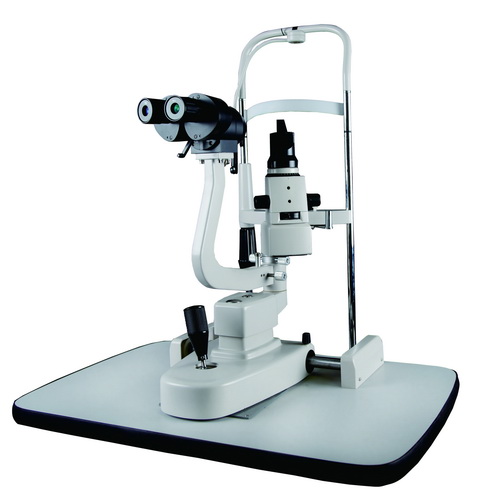

Microscope	Type	Zeiss
	Magnification change	Lever type
	Light source	LED
	Real fields of view	9mm-18mm
	Stereoscopical angle: 13 degree	13 degree
	Eyepiece	10x 16x
	Total magnification	10x 16x 25 x
	Field of View	10X: 20mm, 16X: 13mm, 25X: 8mm
	Range of adjusting the distance of pupi
	pter adjustment	≧±6D can reach ±8D(eyepiece10X) ; ±15D (eyepiece16X) ;
	Slit image width	0mm～14mm continuous
	Slit image length	1mm～14mm continuous
	Diameter of aperture	φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm
	Slit angle	0～180 Rota table
	Filter	Heat absorption, Grey, red free(Green), Cobalt blue
Moving	Back and forth moving	90mm
	Left and right moving	100mm
	Inching moving back and forth, right and left	15mm
	Up and down moving	30mm
Jaw bracket part	Up and down moving	80mm
Jaw bracket part	Fixation	Red LED (supply power：7V, 0.02W；the lamp itself: 2V，0.006W）
Power	Input voltage	110/220V±10％
	Input frequency	50/60Hz
	Input power	60VA
	Output voltage	Illumination: 5V
	Safe standard of electric	IEC601－1、type Ⅰ, BF Model
Weight and Dimension	Packing box	720mm x 495mm x 480mm
Weight and Dimension	Gross weight	25Kg
